CONCRETE SCANNING SERVICES IN UAE

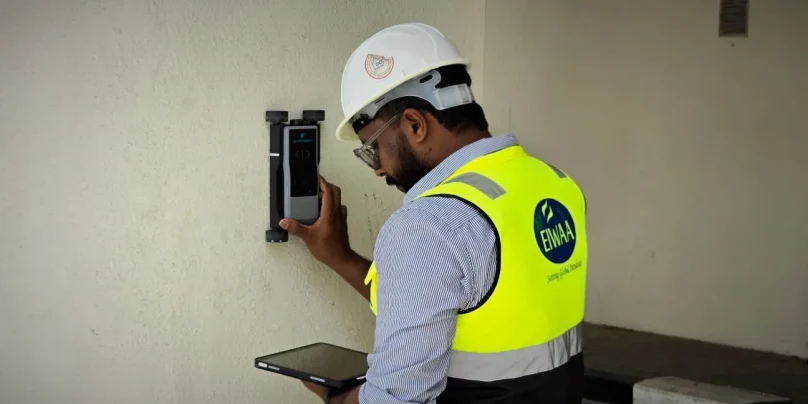

Our Concrete scanning services help to reduce the risk at your construction site and maximize safety by providing non-destructive scanner imaging services and rebar modeling. By rebar scanning services and rebar modeling, you can detect metallic and nonmetallic objects prior to concrete drilling and core cutting. Eventually, concrete scanning and rebar scanning services help to reduce the level of risk of damage for wiring, piping and structural reinforcement. As a top concrete scanning company in UAE, we provide rebar detection services as well as post-tension cable detection services to ensure structural integrity inspection and Civil condition assessment services. Our concrete scanner using ground penetrating radar gives informations of concrete depth, metallic/nonmetallic objects within the concrete structure, air pockets and voids within the structures etc. The importance of our concrete scanning services in UAE is it will help to identify the location and depth of any embedded object by the inbuilt high-resolution ground penetrating radar.
EIWAA Provides innovative Asset Integrity and Civil Condition Assessment Services by NDT Inspection Services of Thermal Imaging, Rebound Hammer Testing, Half-cell potential, Ultrasonic Pulse Velocity Testing and carbonation depth measurement. Nondestructive testing inspection Services of concrete structures help to identify the damage, building integrity, condition survey and durability of concrete structures. EIWAA conducts civil condition assessments in UAE by concrete testing, intrinsic survey, half-cell potential, carbonation depth measurement, cover meter survey (Rebar Scanning) and concrete footing for existing building condition survey. All these civil condition assessment services are used to ensure the quality and integrity of existing structures. Building structural condition survey and assessment include civil condition survey, condition assessment, Structural survey, Total Station Survey and building leakage survey etc. Thermal Imaging Services and Thermography Testing Services of Building determine the water leakages and moisture in walls and panels.
CONCRETE NDT TESTING SERVICES
EIWAA is one of the top concrete NDT Testing companies in UAE for evaluating the structural integrity, Quality and performance of concrete elements without destruction. Various Concrete Examination Methods of Concrete Non-Destructive Examination include Ultrasonic Pulse Velocity Testing (UPV), Rebound Hardness Testing, Ground Penetrating Radar (GPR), Electrical Resistivity Testing and Infrared Thermography Inspection. All types of conduits, post tension cables, pretension cables, pipes, rebar and slab thickness shall be measured by Concrete NDT Inspection and rebar scanning services.
In Non-Destructive Assessment of Concrete, we provide Non-Invasive Concrete Inspection Services, Concrete Condition Monitoring, Concrete Health Assessment, Concrete Structural Analysis, Concrete Testing and Evaluation Services. Integrity Testing of Concrete Structures mainly focuses on Concrete Integrity Testing, Concrete Flaw Detection and Concrete Strength Evaluation by different Concrete Characterization Techniques for accurate Concrete Performance Evaluation.
Ultrasonic Pulse Velocity Testing (UPV): Our Ultrasonic concrete testing services is one of the nondestructive testings of concrete and civil structures to find out the structural integrity, localized defects and voids etc. It is an evaluation of the compressive strength of concrete by using ultrasonic pulse velocity testing. This test method can be used to determine the relative quality and uniformity of concrete, to detect voids and cracks, and to gauge how well crack repairs work. It is also useful for pointing out modifications to the characteristics of concrete and for estimating the degree of degradation or cracking in constructions. The operator’s expertise in measuring the distance between the transducers and the equipment’s capacity to precisely measure the ultrasonic pulse transit time are key factors in measurement accuracy. It is not appropriate to use the test findings from this approach to determine the compliance of the modulus of elasticity of field concrete, nor should they be used as a means of assessing strength.
Rebound Hammer Testing: Our Concrete NDT Inspection Services in UAE offers rebound hammer testing to assess the compressive strength of concrete, quality of concrete and detect the location of weak concrete slabs with voids etc. It is also known as Schmidt hammer testing services or Concrete hammer testing services in UAE. This Nondestructive rebound hammer testing service is used to detect the strength and quality of concrete by identifying the hardness or elastic properties of concrete. Our Schmidt’s hammer testing services is based on the rebound of a spring-loaded mass depending on the hardness of the concrete mass on which mass strikes and the value expressed as Rebound number or rebound impex. Concrete with low energy and low stiffness always absorbs more energy from the plunger; making low rebound value on the scale as calculated concrete strength testing value.
Rebar Scanning: This method will be followed for the determination of the concrete cover, the diameter of steel rebar, and the spacing between the rebar for concrete columns, Beams, Slabs and walls. The Cover Meter Survey test is based on the concept that electromagnetic field radiation is generated by the search head and it is as per BS 1881 Part 204:1988 Clause 8. “Recommendations on the use of Electromagnetic Cover Meter. When a reinforcing bar or metal object lies within this field, the lines of force become distorted. The disturbance caused by the presence of metal in turn produces field strength as detected by the search head and indicated by the meter along with the Cover.
Thermal Imaging: Our Building Thermography Inspection Services by thermal Imaging widely used in Building envelope Inspection. For identifying air leaks and Air leakage inspection in the Building, our infrared scanning services measure any uncontrolled air movement into or out of your building, bypassing leakages of the heating or ventilation or HVAC Air conditioning system. Our Infrared thermal imaging services are used to identify thermal bridging or clod bridging in a building which makes it inefficient to stay warm conditions. Our Thermal Survey in UAE is less invasive, cheaper and more efficient for identifying the leakage detection of building roofs, walls, doors, windows and electrical sockets.
Acoustic Emission Testing: The concrete micro-cracking caused by considerable rebar corrosion can be detected using the acoustic emission method, which can also be used to monitor internal fractures in the concrete and determine the rate at which they grow in response to varying loads or environmental factors. Buildings, bridges, hydraulic structures, tunnels, decks, pre/post-tensioned (PT) structures, piers, nuclear containment units, storage tanks, and related structural parts are among the concrete structures that are subject to acoustic emission testing. Long-term monitoring of pre-stressed cables, safe operational load establishment, and the detection of developing cracks in structures or their elements during controlled load testing or normal service conditions are all accomplished using acoustic emission testing.
Concrete Pull Out Testing: Pull Out testing of concrete is used to measure the tension as well as shear strength; have a coefficient of variation comparable to the concrete compressive strength. Concrete pull-out testing Services is used to find out the strength of concrete and reinforced concrete structures for carrying out post-tensioning operations. Standards of concrete pull-off testing services are EN 1542, EN 1348, EN 1015-12, EN 13687-2, EN 13963 and EN 14496 / NF P18-858 / BS 1881:207.Pull of testing services are used to find out the presence of coarse aggregates, disc diameter and thickness and back pressure system.
